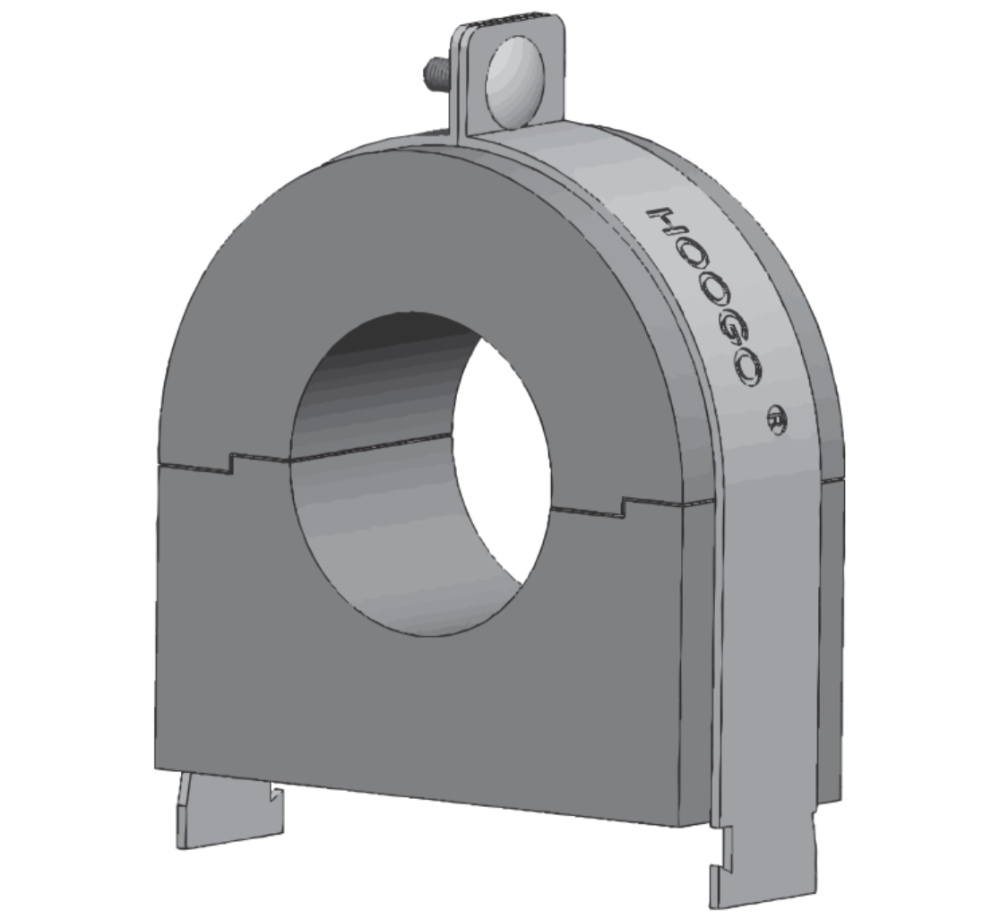

保溫管束
產品特性
- 有效防止冷凝作用對管道的損壞
- 絕緣材料無氯化碳、甲醛、鎘等有害物質
應用場景
- 適用於冷卻水,保溫管道和DN500以下標準管道應用
品 名
| 抱 箍 範 圍 ( mm )
| 螺 栓 規 格 ( mm )
| 容重(kg/m³)
| 尺寸(mm) | h(mm) | s(mm) | 設計荷載(kN) | 品號
|
| 22A保溫管束-HDG | 22 | M8X30 | 300 | 50 | 25 | 1.6 | 0.420 | 501091 |
| 25A保溫管束-HDG | 25 | M8X30 | 300 | 50 | 30 | 1.6 | 0.444 | 501092 |
| 32A保溫管束-HDG | 32 | M8X30 | 300 | 50 | 25 | 1.6 | 0.504 | 501093 |
| 40A保溫管束-HDG | 40 | M8X30 | 300 | 50 | 30 | 1.6 | 0.624 | 501094 |
| 48A保溫管束-HDG | 48 | M8X30 | 300 | 50 | 25 | 1.6 | 0.564 | 501095 |
| 57A保溫管束-HDG | 57 | M8X30 | 300 | 50 | 30 | 1.6 | 0.588 | 501096 |
| 76A保溫管束-HDG | 76 | M8X30 | 300 | 50 | 30 | 1.6 | 0.636 | 501097 |
| 89A保溫管束-HDG | 89 | M8X30 | 300 | 50 | 30 | 1.6 | 0.744 | 501098 |
| 108A保溫管束-HDG | 108 | M8X30 | 300 | 50 | 50 | 1.6 | 0.780 | 5010991 |
| 114A保溫管束-HDG | 114 | M8X30 | 300 | 50 | 30 | 1.6 | 0.828 | 501099 |
| 133A保溫管束-HDG | 133 | M8X30 | 300 | 50 | 40 | 3.0 | 0.936 | 501100 |
| 140A保溫管束-HDG | 140 | M8X30 | 300 | 50 | 40 | 3.0 | 1.836 | 5011006 |
| 159A保溫管束-HDG | 159 | M8X30 | 300 | 50 | 40 | 3.0 | 1.920 | 5011011 |
| 165A保溫管束-HDG | 160 | M8X30 | 300 | 50 | 40 | 3.0 | 2.004 | 501101 |
| 219A保溫管束-HDG | 219 | M8X30 | 300 | 50 | 40 | 3.0 | 2.076 | 501102 |
| 273A保溫管束-HDG | 273 | M8X30 | 300 | 50 | 40 | 3.0 | 3.420 | 501103 |
| 325A保溫管束-HDG | 325 | M8X30 | 300 | 50 | 40 | 3.0 | 3.552 | 501104 |
| 377A保溫管束-HDG | 377 | M8X30 | 300 | 50 | 40 | 3.0 | 5.412 | 501105 |
